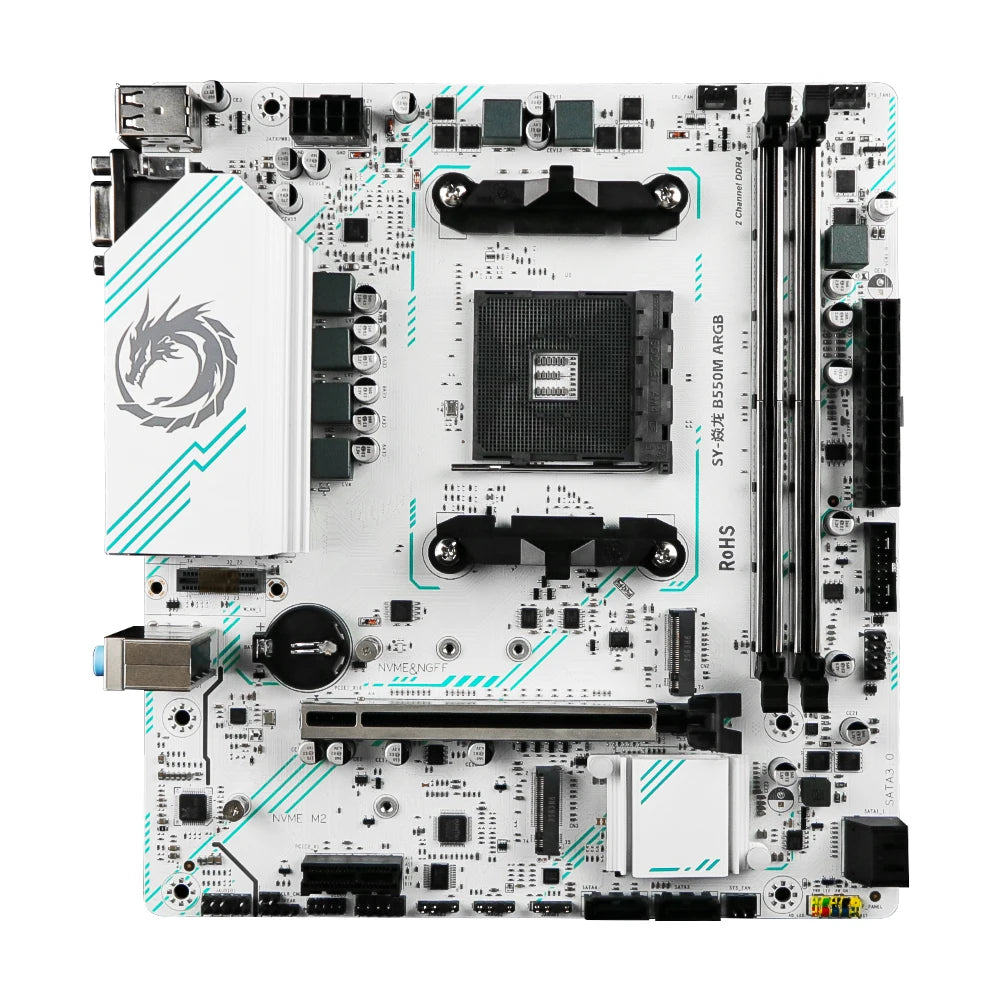

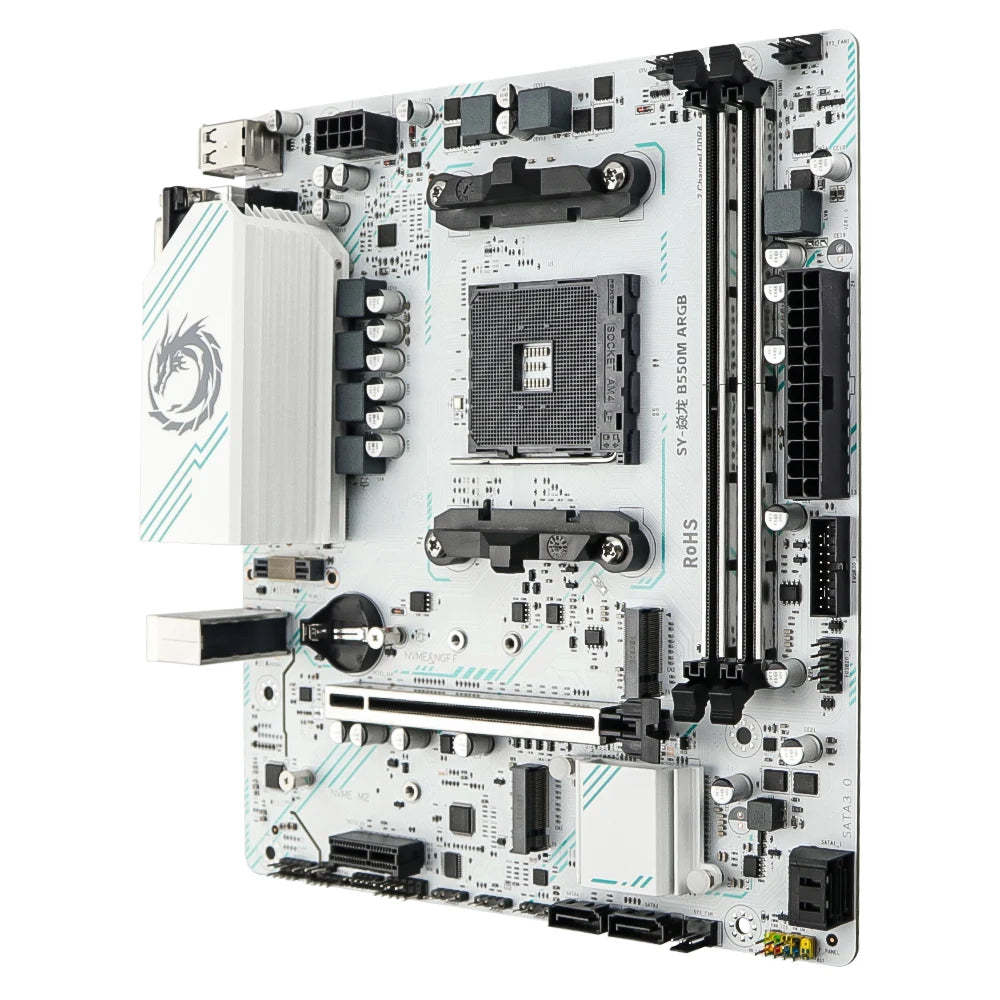

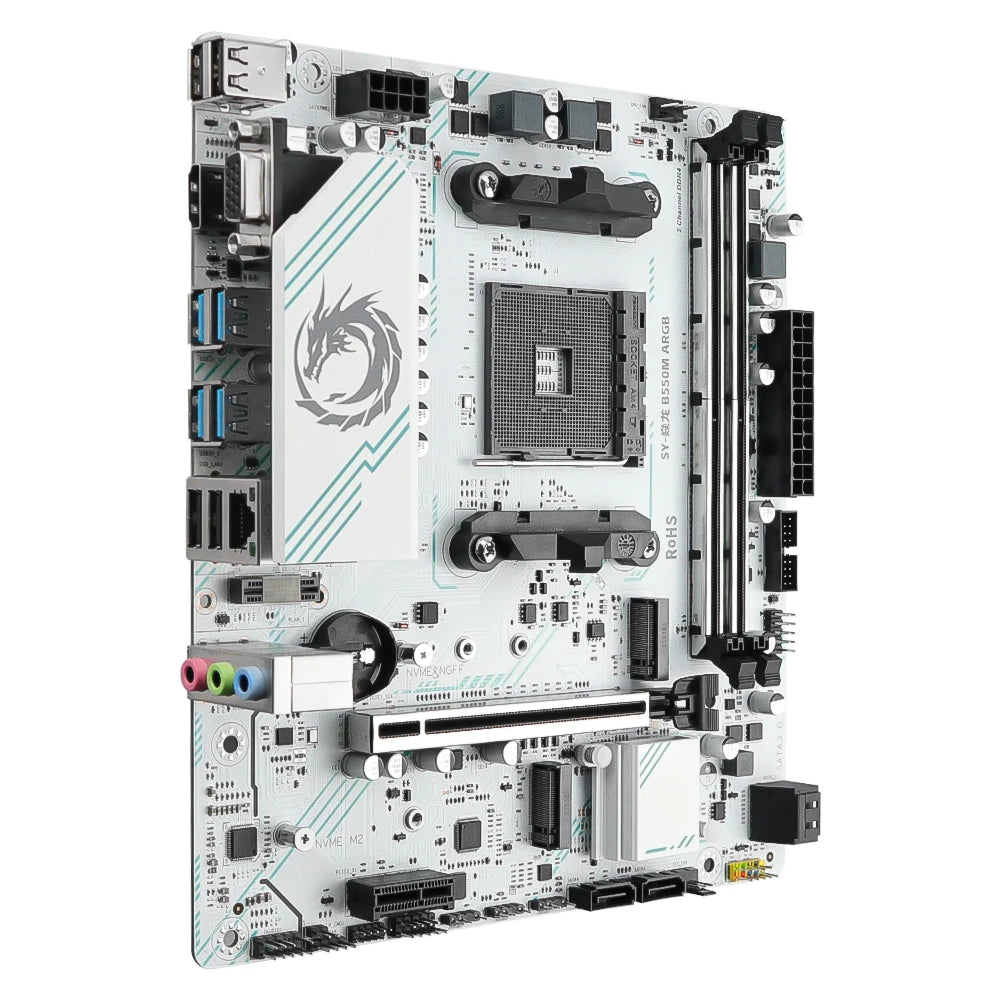

SOYO AMD B550M ARGB DDR4 Micro ATX Motherboard AM4
SOYO AMD B550M ARGB DDR4 Micro ATX Motherboard AM4
Couldn't load pickup availability
Power your AMD build with a feature-rich B550M motherboard that blends overclocking potential, fast storage options, and flexible ports for gaming and work.
- Overclocking-ready design with PCIe 4.0 x16 and the AMD B550 chipset lets you push Ryzen CPUs for steadier frame rates and snappier multitasking.

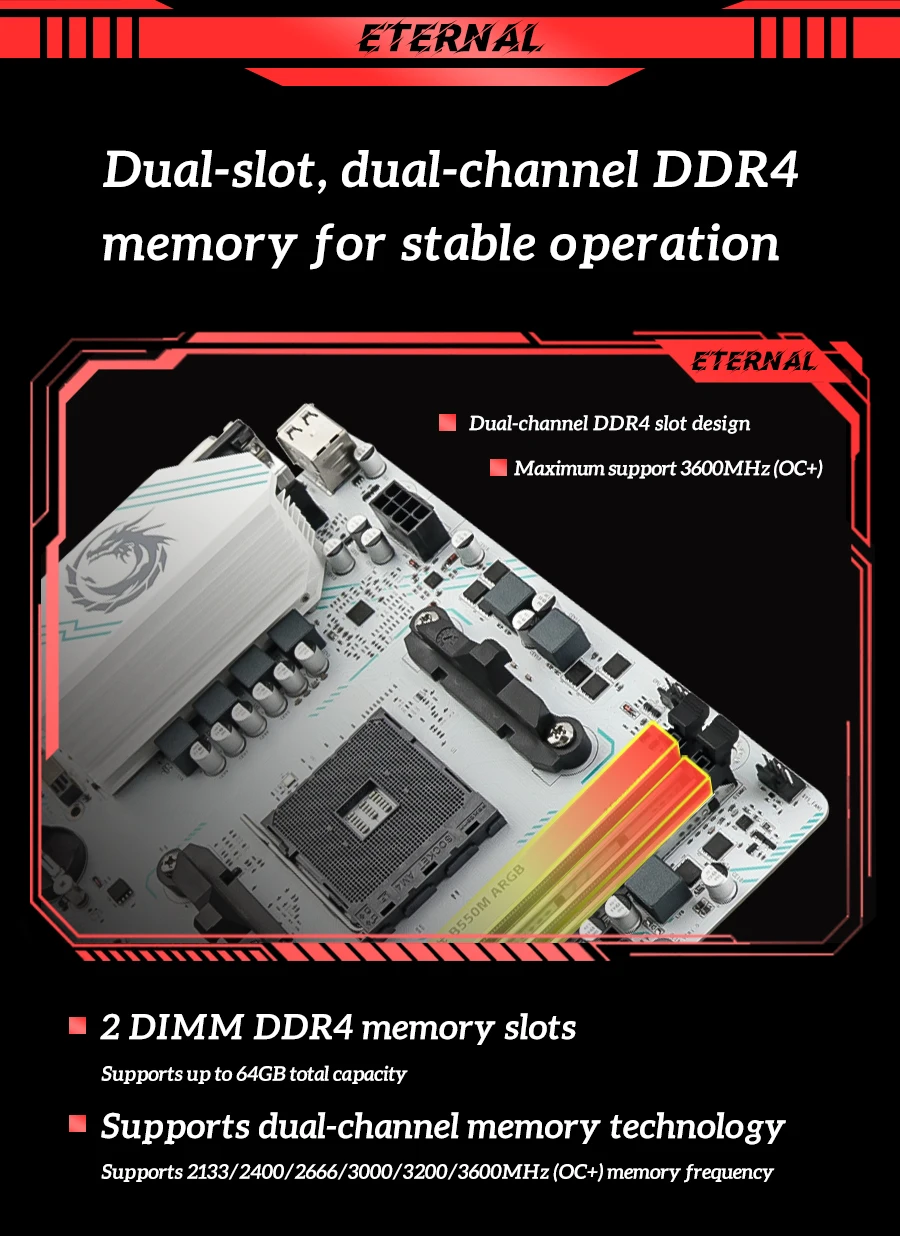

- Memory and storage flexibility: dual DDR4 slots support up to 64 GB, 2133–3600 MHz (OC+), plus two M.2 slots and four SATA3 ports for fast boot and ample space.

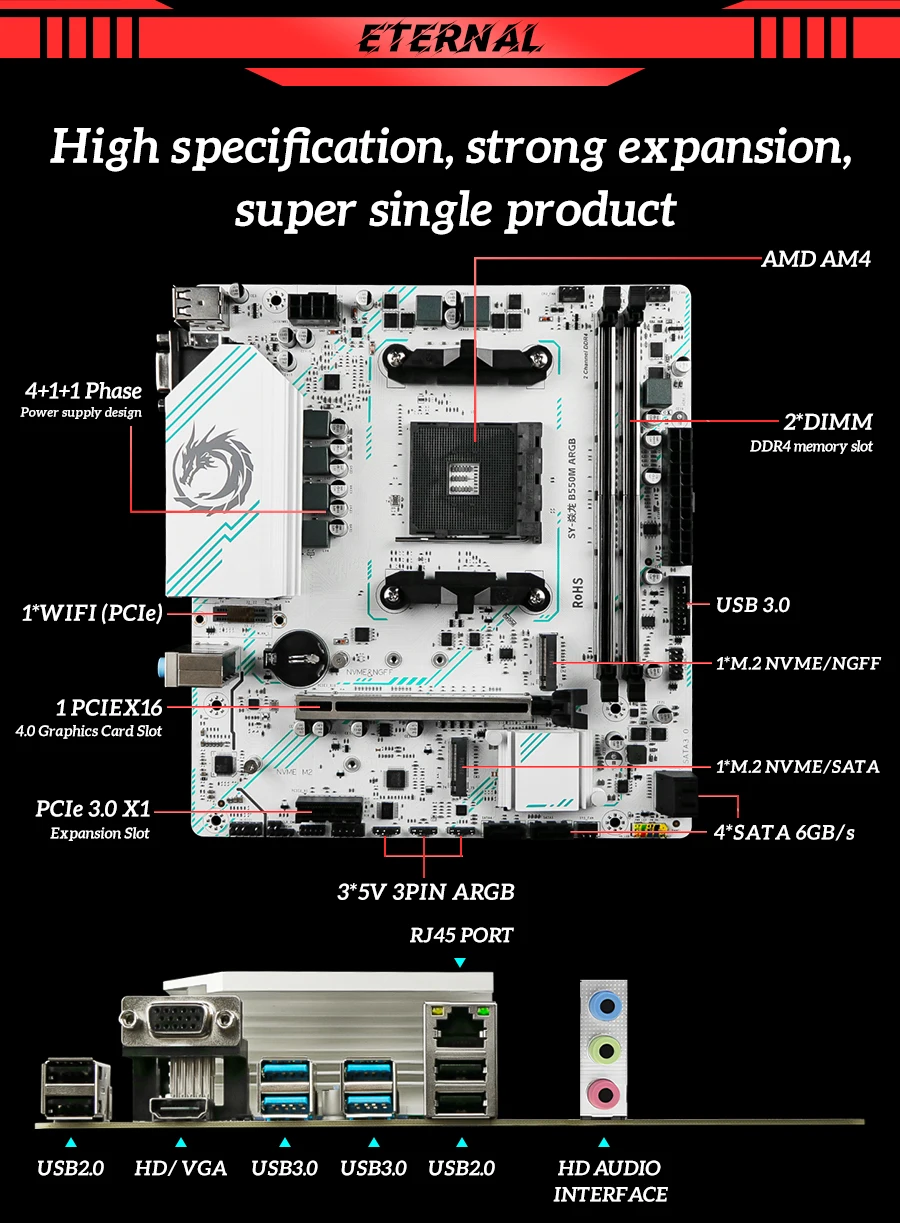

- Display and connectivity: HDMI 2.0 and VGA video outputs, Realtek Gigabit Ethernet, and a broad USB footprint (USB 3.2 Gen1 and USB 2.0) for peripherals.
- Expansion and aesthetics: PCIe x16 and PCIe x1 slots, an integrated ARGB header, plus essential power connectors (24-pin and 8-pin +12V) for easy builds.

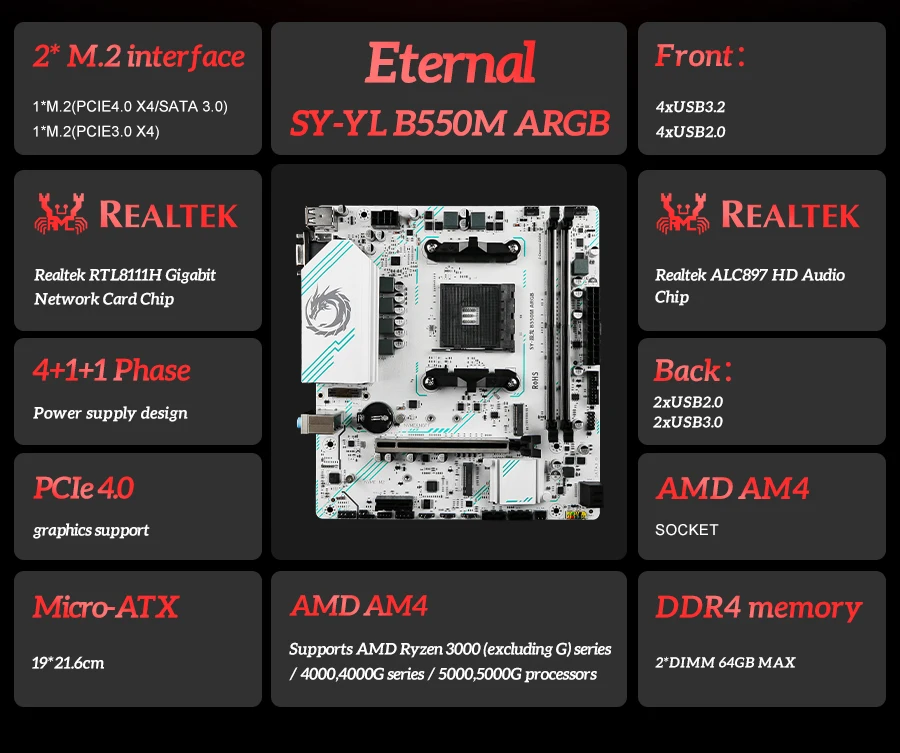

Motherboard Chipset |
AMD B550 |
CPU Support |
Supports AMD Ryzen 3000 (non-G series)/4000, 4000G/5000, 5000G Series Processors
Optional: R5-3600, R5-4650G, R5-5600G, R7-5700X, R7-5700X3D, etc.
|
Memory |
DDR4 2, Dual-Channel; Supports 2133/2400/2666/3000/3200/3600MHz (OC+)
Supports XMP, Max Capacity: 64G (32G2)
|
Storage |
2* M.2 Slots (CN2: PCIE4.0 X4/SATA3.0), (CN3: PCIE3.0 X4); 4*SATA3.0 Interfaces |
Display Outputs |
1HDMI 2.0 Port, 1VGA Port |
Network |
1*RJ45 Ethernet Port |
LAN Chipset |
Realtek Gigabit Ethernet Chip |
PCIe Slots |
1PCIe X16 Slot (PCIe4.0 X16), 1PCIe X1 Slot (PCIe3.0 X1), 1*WIFI Slot (PCIe Protocol) |
Audio |
1Line Out; 1Mic In; 1Line In; 1F_Audio Internal Header |
Audio Chipset |
Realtek ALC897 HD Audio Chip |

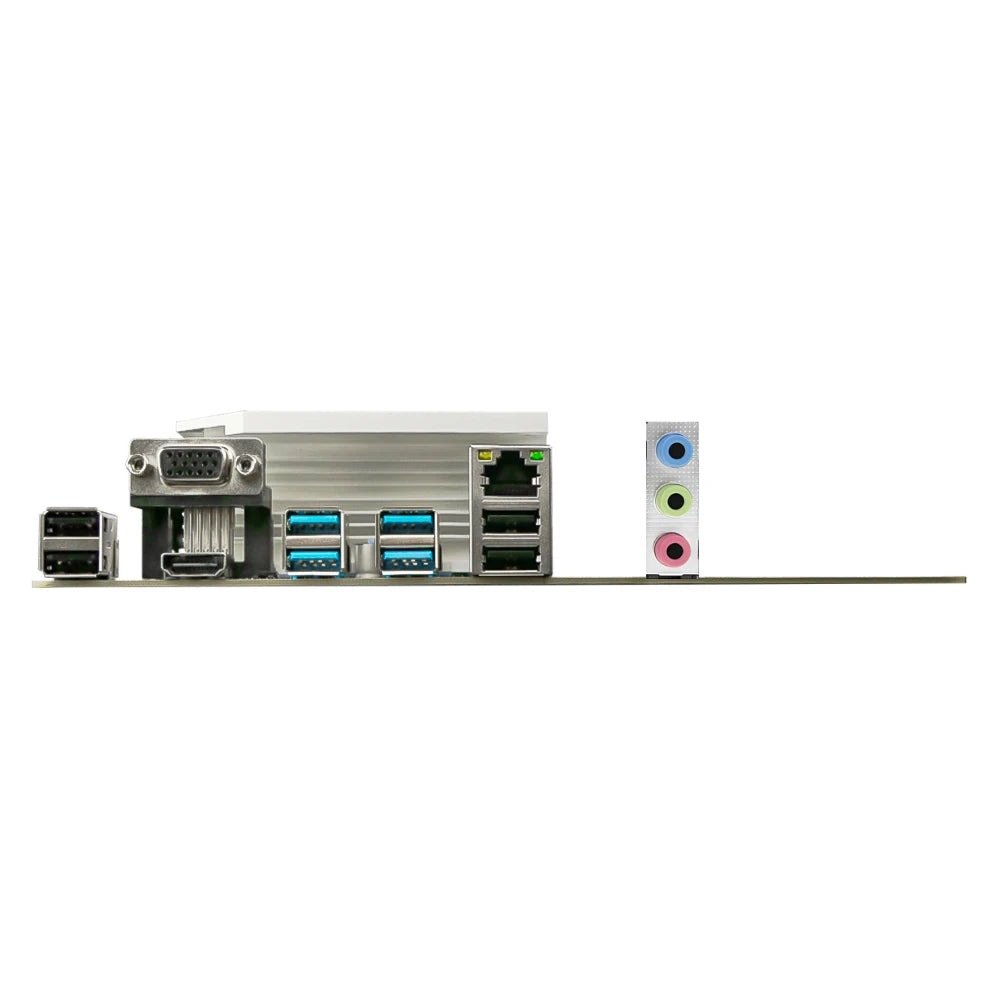

USB Interfaces |
I/O Ports: 4USB3.2 GEN1 (5Gbps), 4USB2.0
Internal Headers: 1USB2.0 Header (Expands 2 USB2.0 Ports)
1USB3.0 Header (Expands 2 USB3.0 Ports); 5Gbps
|

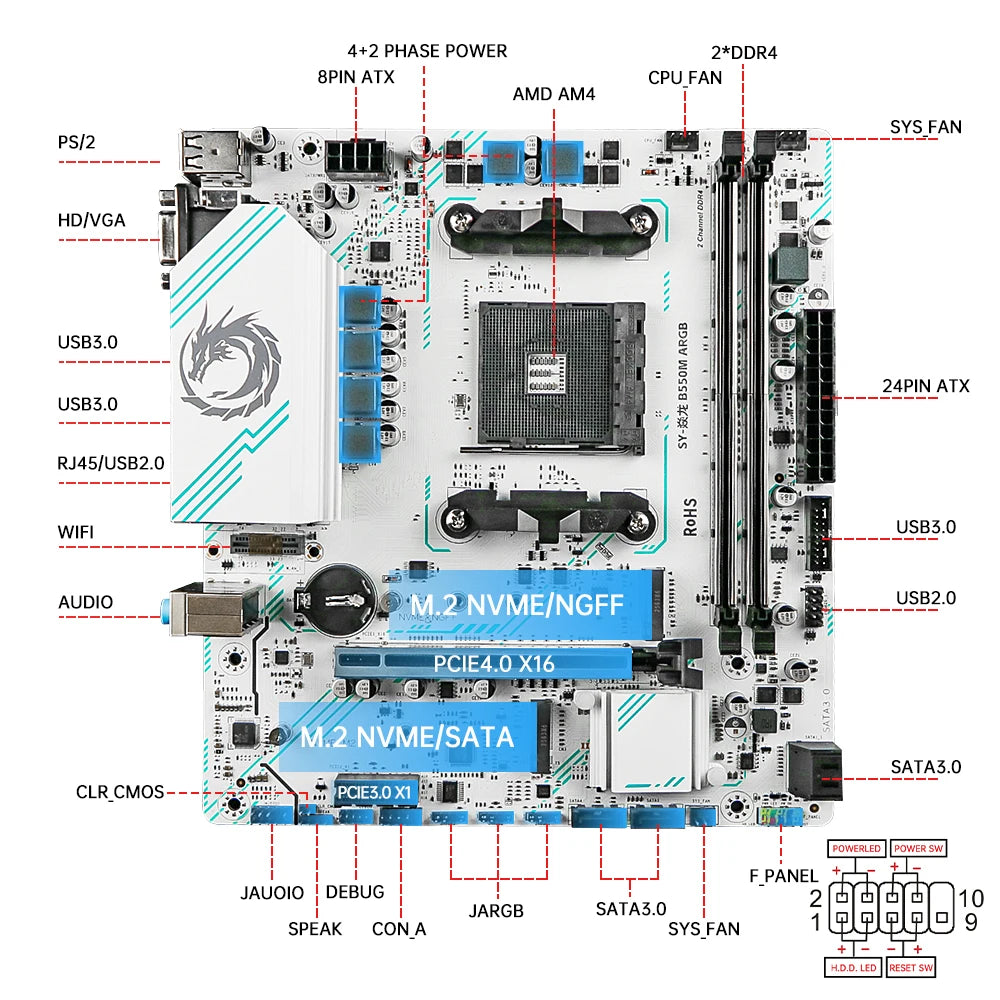

Functional Headers |
1FPANEL Front Panel Header; 14Pin CPU Fan Header; 14Pin + 13Pin SYS Fan Header; 14Pin Speaker Header
25Pin COM Headers; 25Pin Debug Headers; 35V 3PIN ARGB Headers
|
Power Input |
24 Pin + 8 Pin ATX Power Connector |
Parameter |
Details |

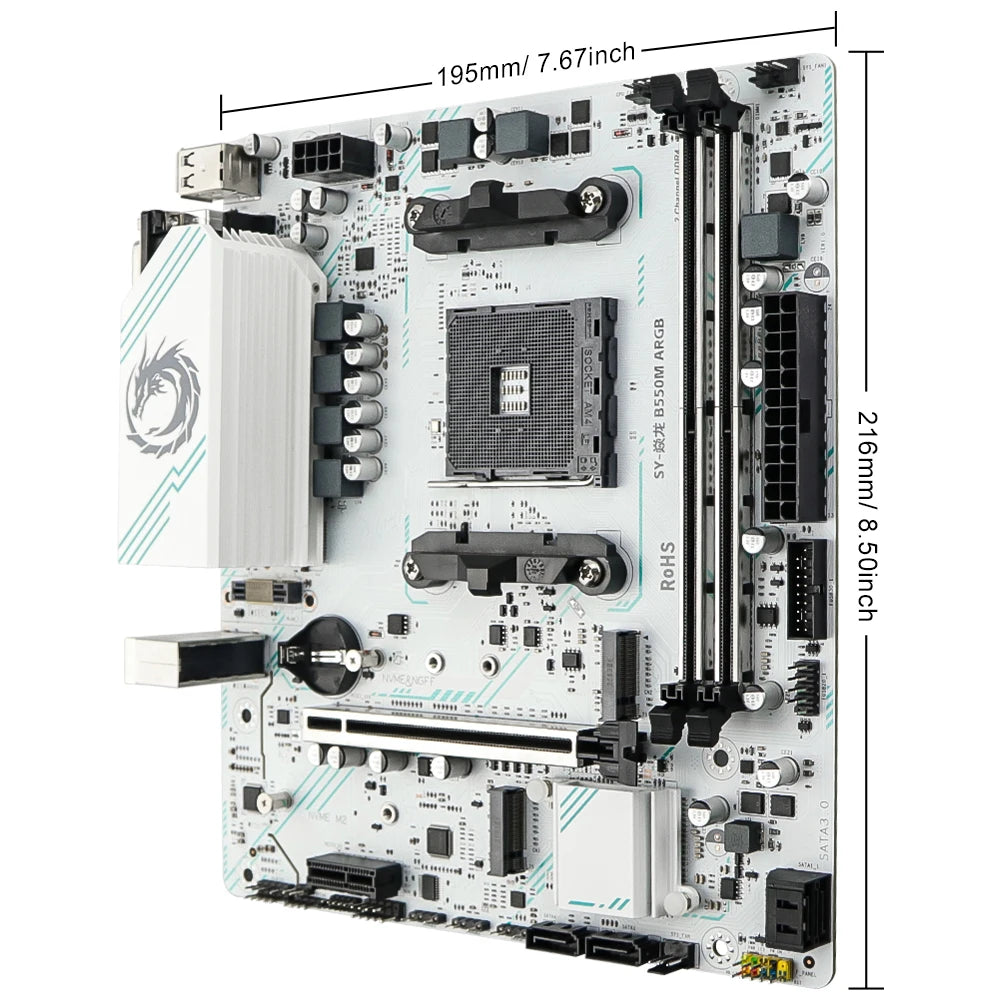

Product Size |
195 mm x 216 mm |
Operating Environment |
Temperature: -20°C ~ 60°C, Humidity: 0-95% RH, Non-condensing |
Power Consumption |
Standby Power: 30~70 W
Full Load Power: 200~450 W (for reference only)
|
Other |
1*CLR CMOS 2PIN Jumper |
