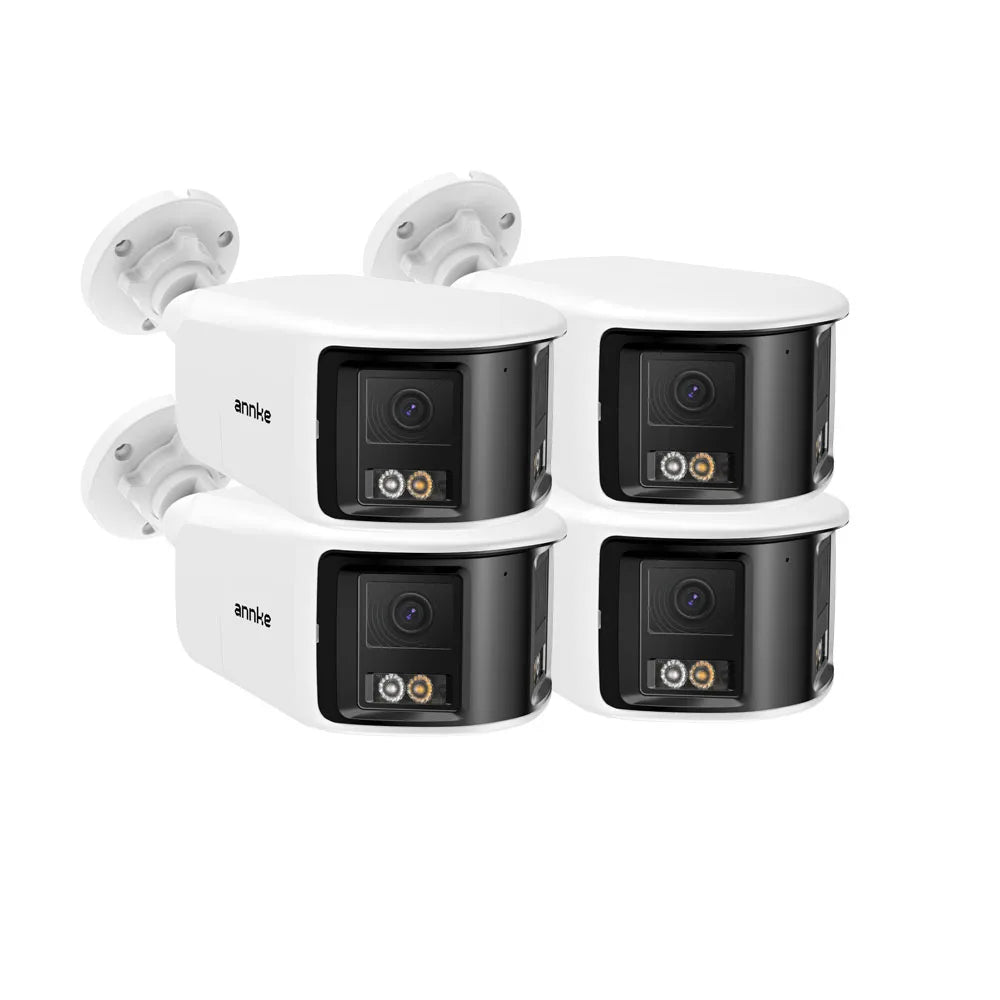

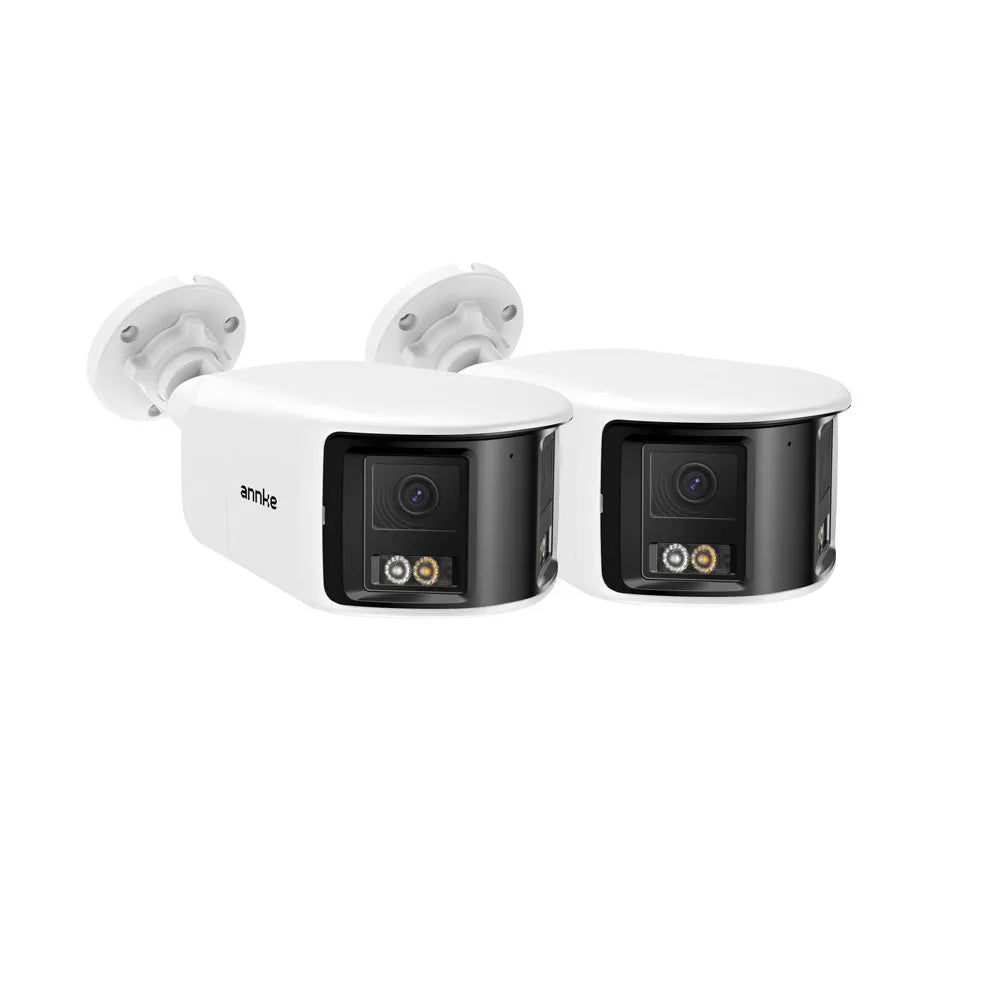

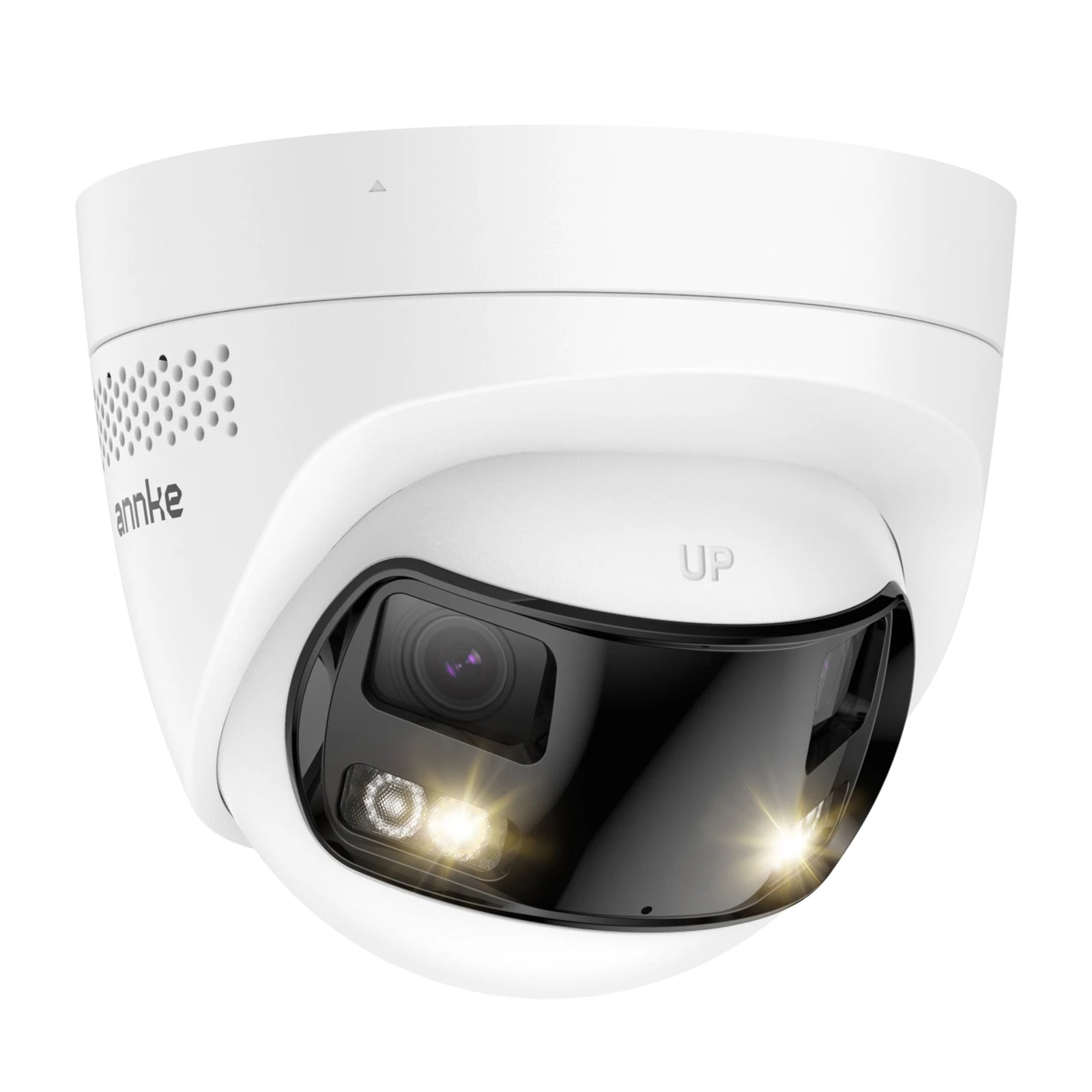

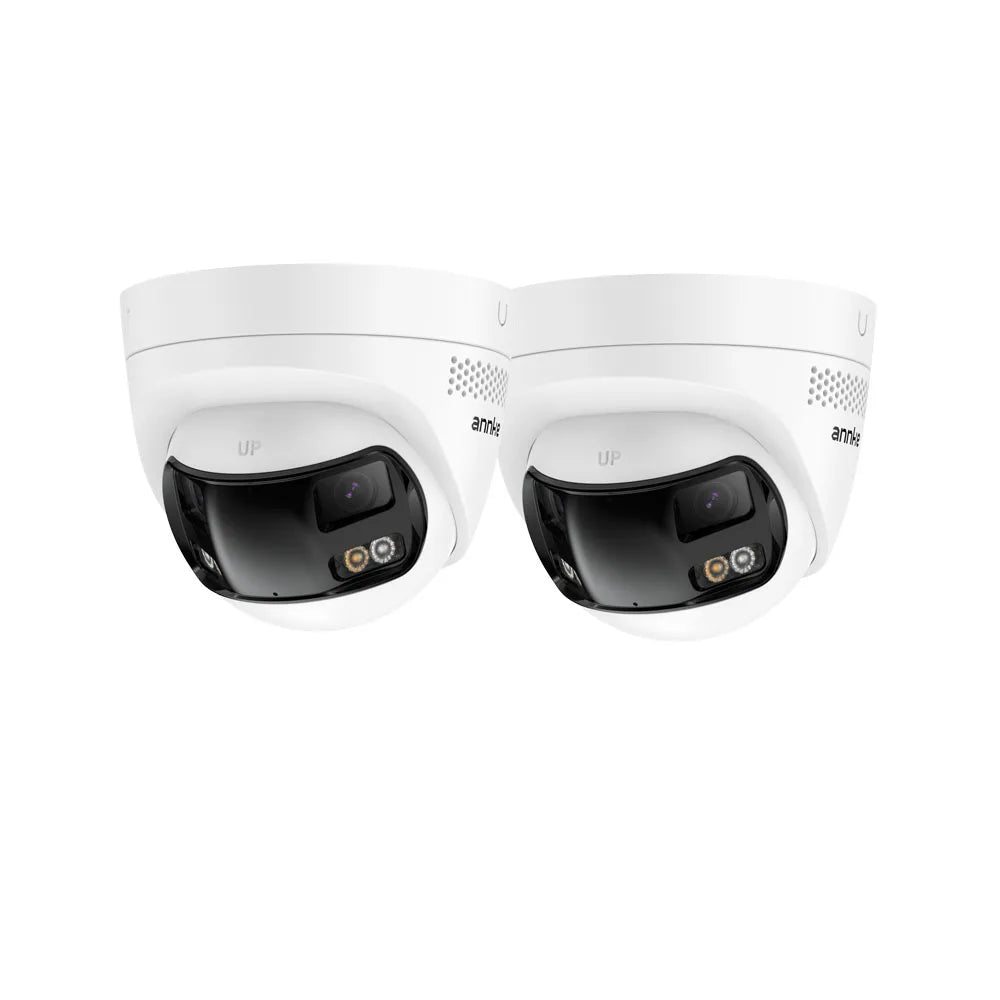

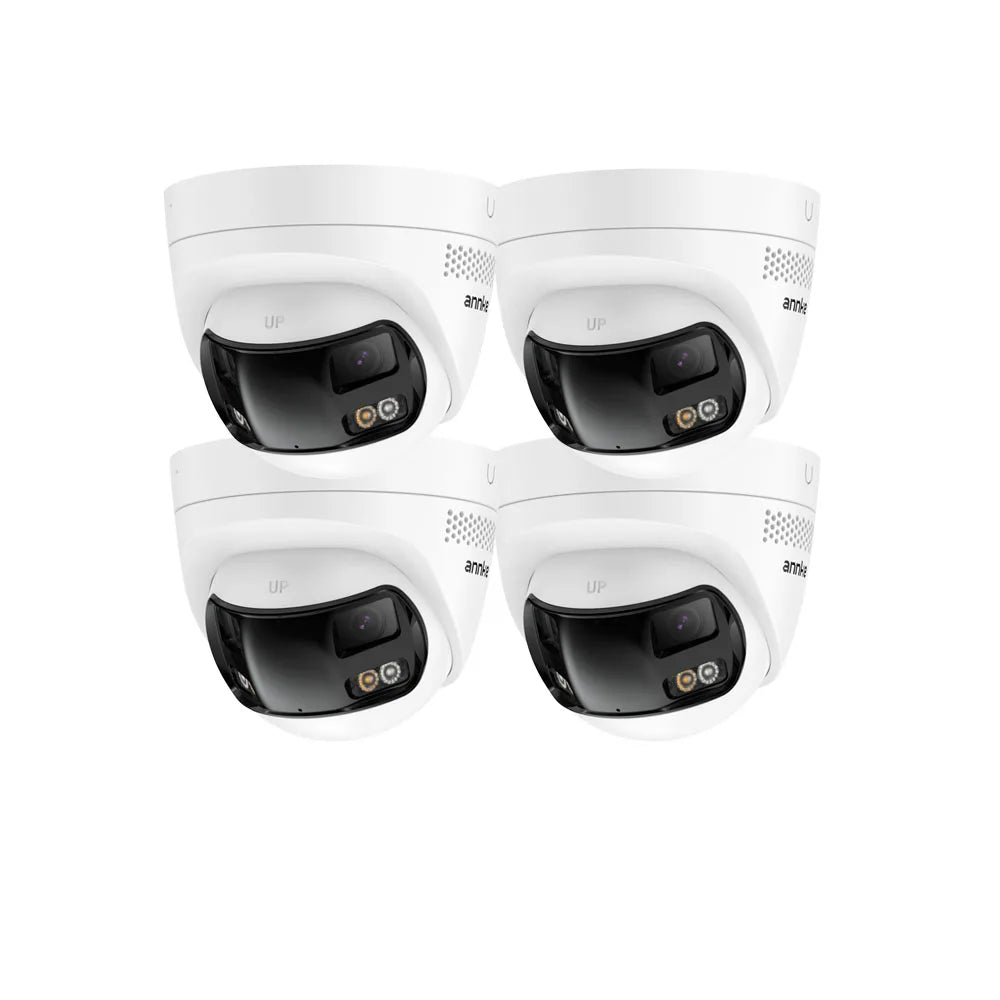

Annke FCD800 8MP Panoramic Outdoor Security Camera AI Human Detect IP67
Annke FCD800 8MP Panoramic Outdoor Security Camera AI Human Detect IP67
Couldn't load pickup availability
See every detail with the Annke FCD800 8MP panoramic outdoor security camera—clear, wide coverage you can rely on.
- 8MP panoramic clarity from dual 2mm lenses delivers sharp, actionable footage that helps you spot faces, vehicles, and events across large outdoor spaces.
- AI Motion Detection with Human and Vehicle detection minimizes false alerts and triggers a local alarm when real activity is detected.

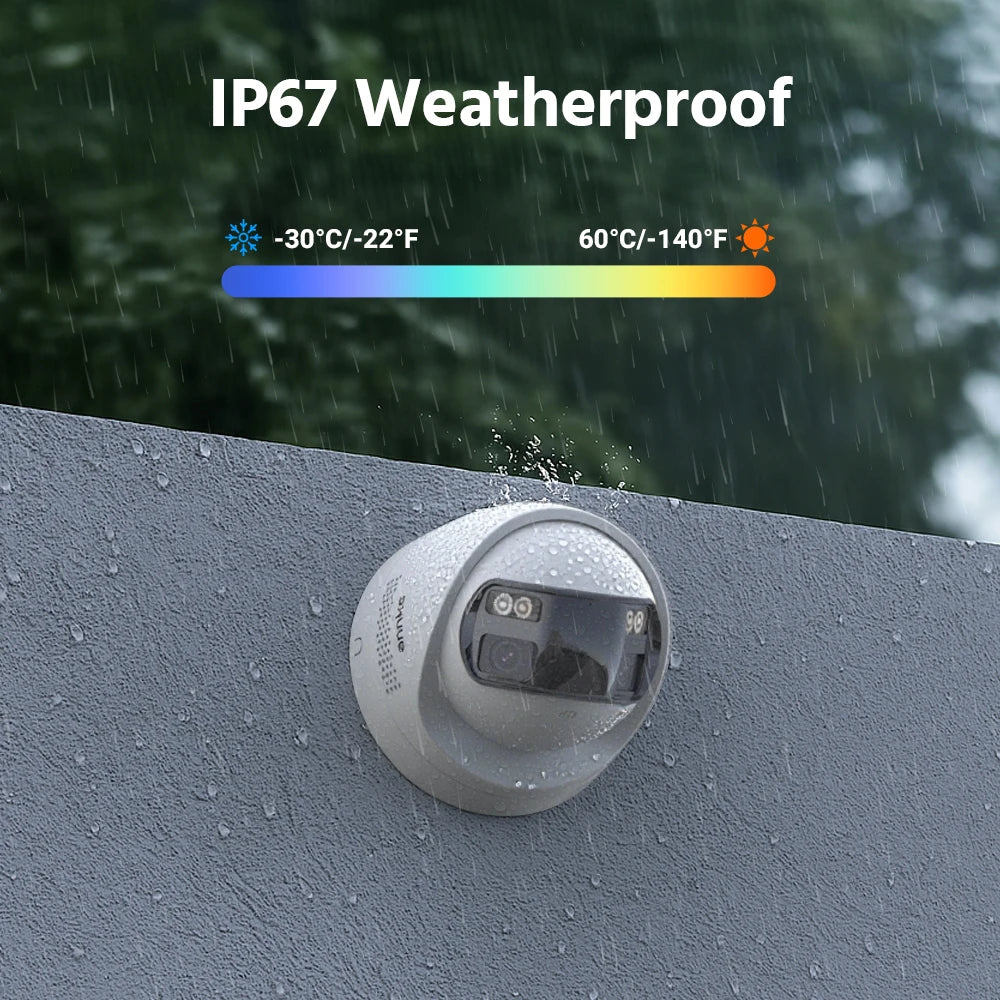

- Rugged IP67 protection with Color Night Vision and up to 30 meters of IR reach keeps you protected indoors and outdoors in rain, dust, or darkness.
- Effortless setup with PoE power, flexible mounting (wall or pendant), a built-in microphone for audio, and a Sony CMOS sensor for vibrant colors.

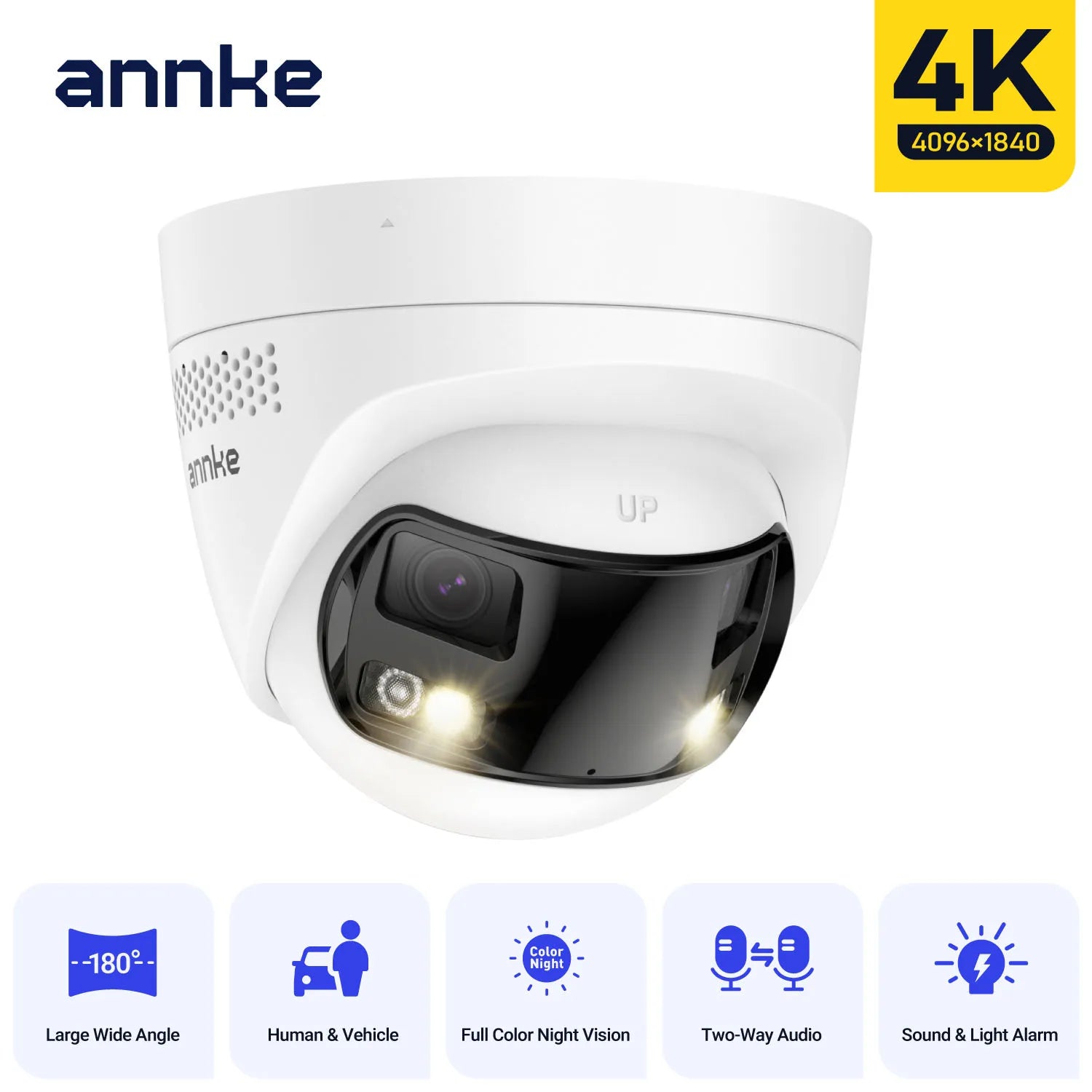

Model Number | I91ET | |
IP Camera | ||
Camera | Image sensor | 2×1/2.4" Progressive Scan CMOS |
Max resolution | 4096 x 1860 | |
Main Stream | 50 Hz: 20 fps (4096 x 1860) | |
Sub Stream | 50 Hz：20 fps（1200 × 536, 960 × 432） | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Built-in Microphone, record with audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB | |
Lens | Dual lens: 2 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) | |
Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° | |
Supplement Light Type | Smart light, white light, IR light | |
Supplement Light Range | White light up to 30 m, IR light up to 30m | |
Motion detection 2.0 | Supoort, include human & vehicle detection | |
Image Parameters Switch | Yes | |

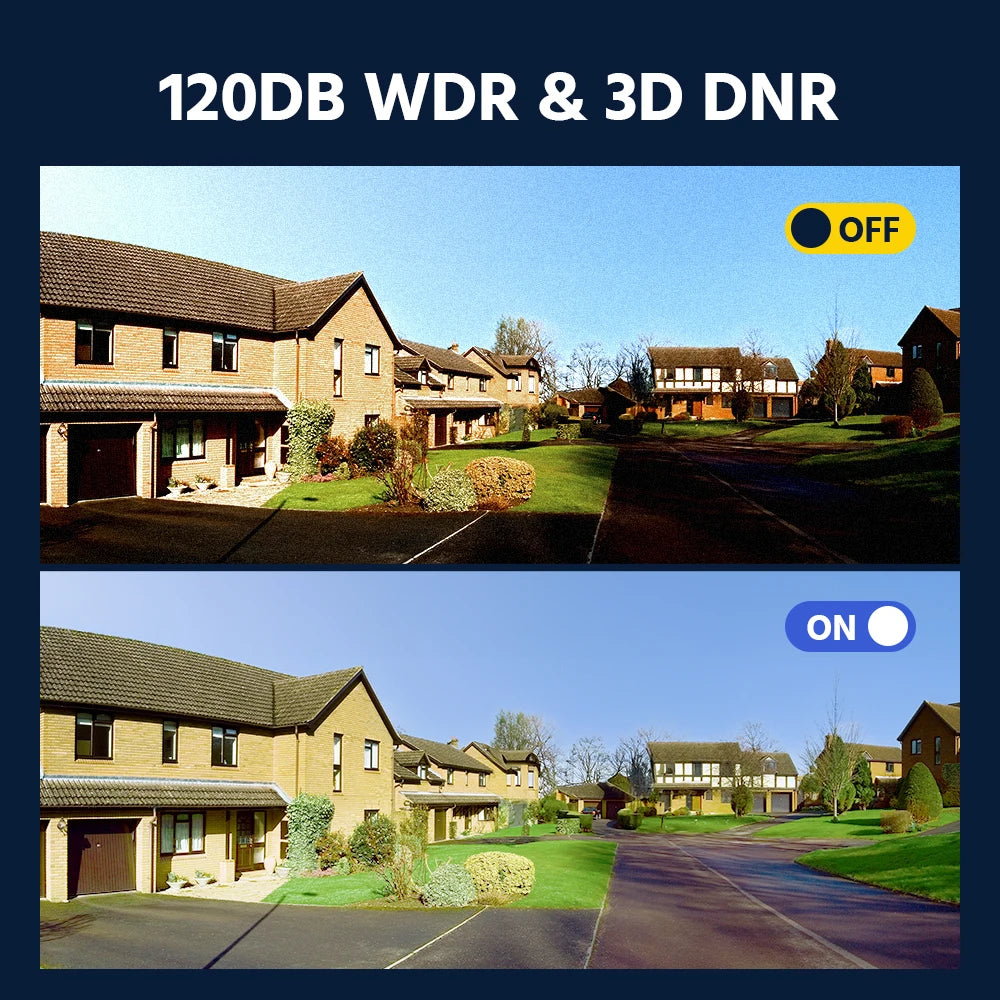

Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP | |
API | Support Open Network Video Interface protocol, version 19.12 | |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Flashing Alarm | White light, frequency adjustable, can be triggered from APP | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Privacy Mask | 4 programmable polygon privacy masks | |
General Function | Rotate, remote access, IP Address Filter | |
General | Housing | Metal&Plastic, white color |
Operating Power | PoE (802.3af)，max 11.5W, | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") | |
Weight | Approx. 586 g (1.3 lb.) | |

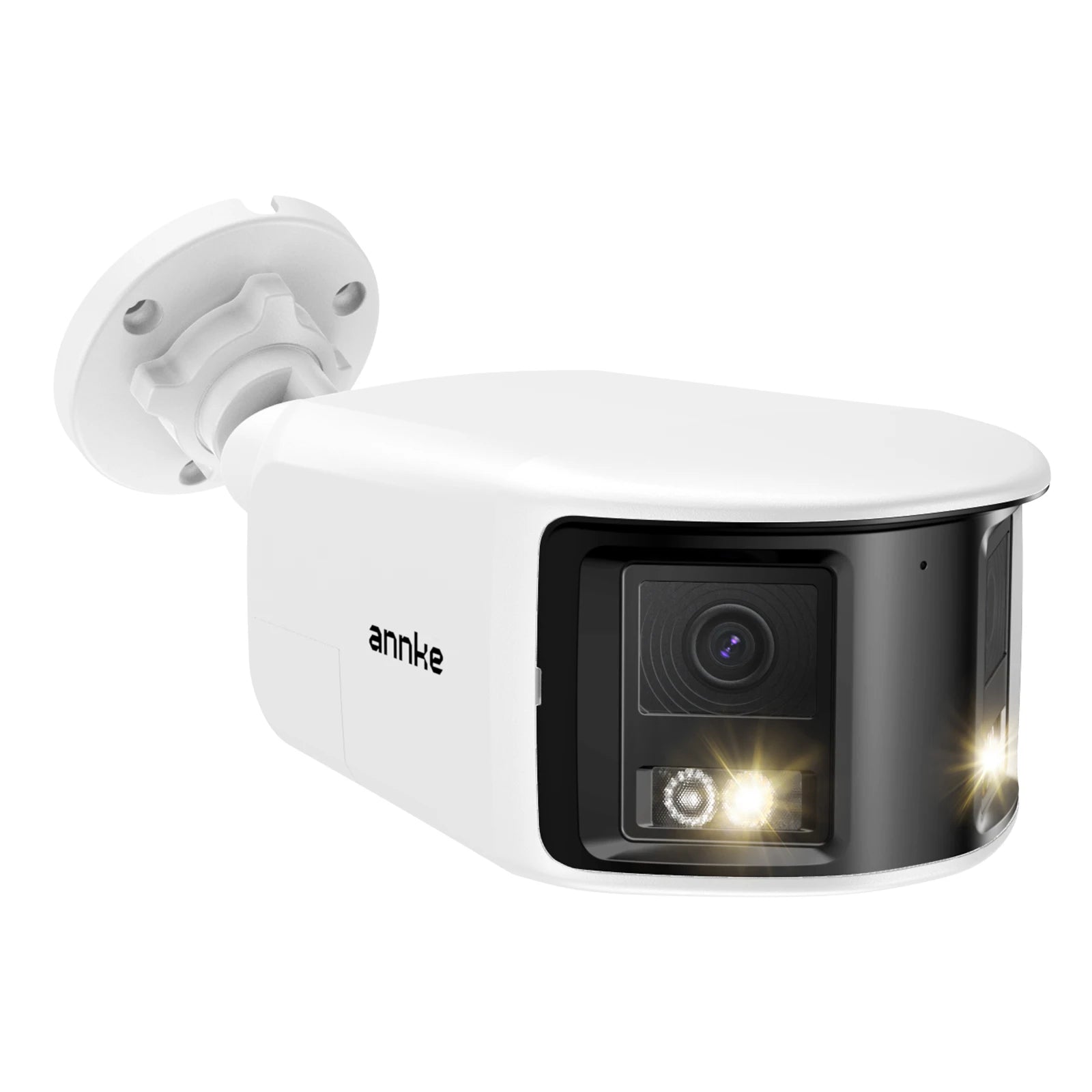

Model Number | I91EV | |
IP Camera | ||
Camera | Image sensor | 2×1/2.4" Progressive Scan CMOS |
Max resolution | 4096 x 1860 | |
Main Stream | 50 Hz: 20 fps (4096 x 1860) | |
Sub Stream | 50 Hz：20 fps（1200 × 536, 960 × 432） | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Built-in Microphone, record with audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB | |
Lens | Dual lens: 2 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) | |
Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° | |
Supplement Light Type | Smart light, white light, IR light | |
Supplement Light Range | White light up to 30 m, IR light up to 30m | |
Motion detection 2.0 | Supoort, include human & vehicle detection | |
Image Parameters Switch | Yes | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP | |
API | Support Open Network Video Interface protocol, version 19.12 | |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Flashing Alarm | White light, frequency adjustable, can be triggered from APP | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Privacy Mask | 4 programmable polygon privacy masks | |
General Function | Rotate, remote access, IP Address Filter | |
General | Housing | Metal&Plastic, white color |
Operating Power | PoE (802.3af)，max 11.5W, | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") | |
Weight | Approx. 560 g (1.2 lb.) | |
