ANNKE 4K 8MP Panoramic Dual Lens Outdoor PoE Security Camera
ANNKE 4K 8MP Panoramic Dual Lens Outdoor PoE Security Camera
Couldn't load pickup availability
Capture every angle in crystal-clear 4K with the ANNKE 4K 8MP Panoramic Dual Lens Outdoor PoE Security Camera.
- Dual-lens 8MP 4K panorama with Color Night Vision delivers expansive, detailed coverage from a single camera.
- AI Motion Detection 2.0 recognizes humans and vehicles, sending precise alerts and triggering a local alarm.
- Rugged outdoor-ready design with IP67 housing, PoE power, 12V DC option, and IR up to 30m for all-weather clarity.
- Easy installation on wall or pendant mount, 2 mm lenses on Sony CMOS sensor for dependable color and built-in microphone for audio capture.

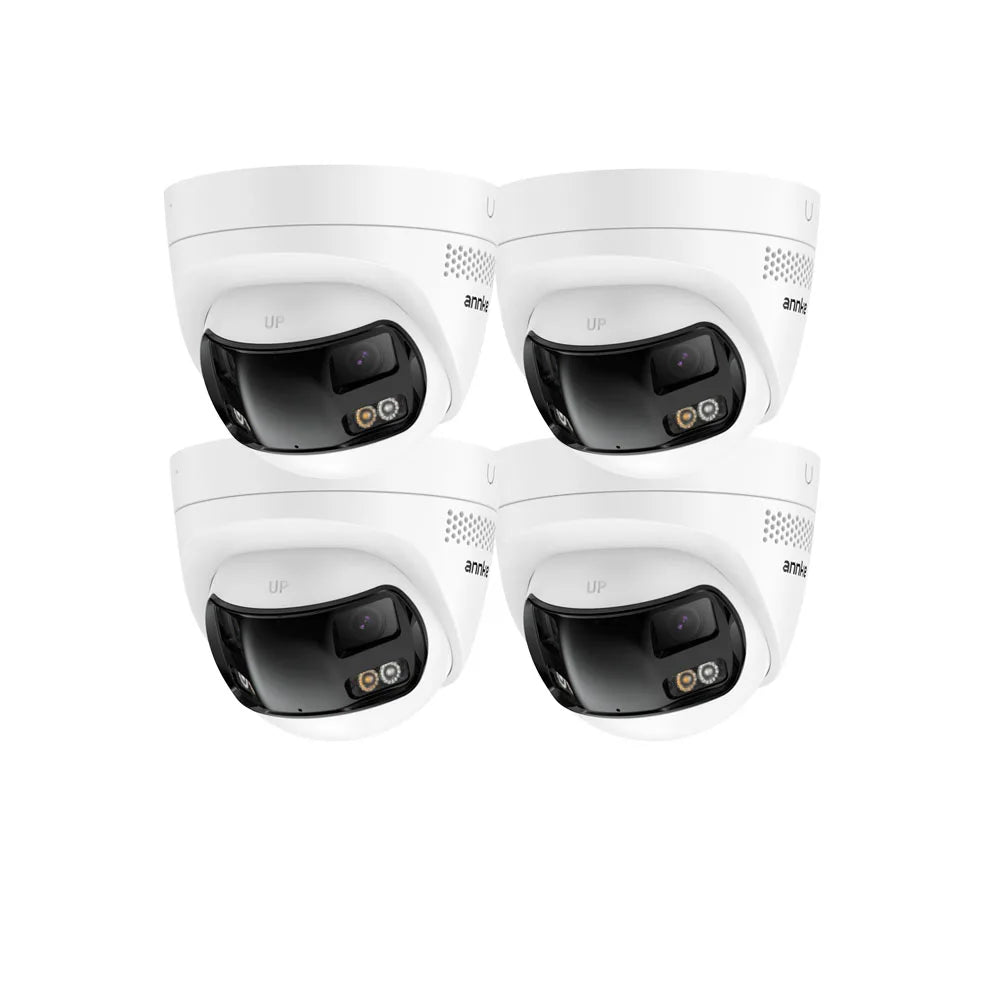

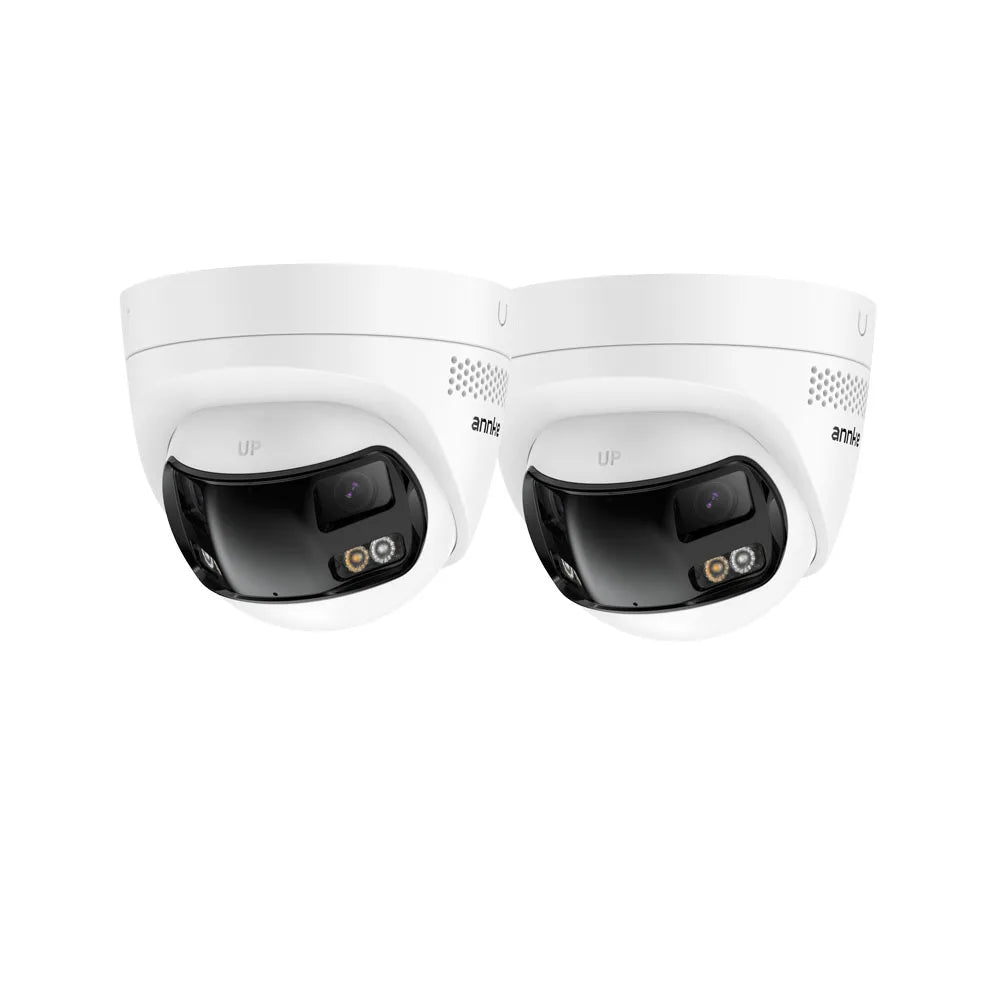

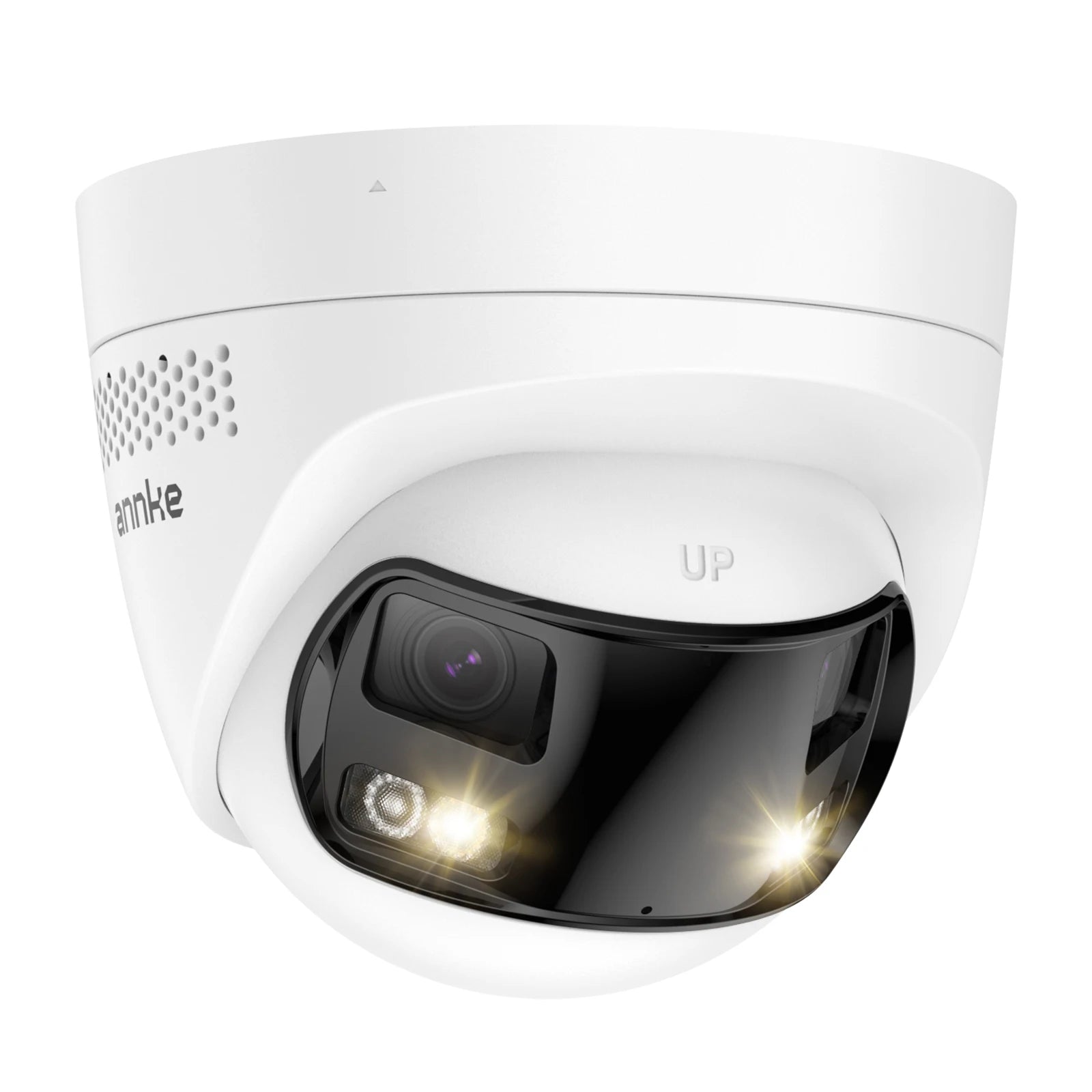

Model Number | I91ET | |
IP Camera | ||
Camera | Image sensor | 2×1/2.4" Progressive Scan CMOS |
Max resolution | 4096 x 1860 | |
Main Stream | 50 Hz: 20 fps (4096 x 1860) | |
Sub Stream | 50 Hz：20 fps（1200 × 536, 960 × 432） | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Built-in Microphone, record with audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB | |
Lens | Dual lens: 2 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) | |
Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° | |
Supplement Light Type | Smart light, white light, IR light | |
Supplement Light Range | White light up to 30 m, IR light up to 30m | |
Motion detection 2.0 | Supoort, include human & vehicle detection | |
Image Parameters Switch | Yes | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP | |
API | Support Open Network Video Interface protocol, version 19.12 | |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Flashing Alarm | White light, frequency adjustable, can be triggered from APP | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Privacy Mask | 4 programmable polygon privacy masks | |
General Function | Rotate, remote access, IP Address Filter | |
General | Housing | Metal&Plastic, white color |
Operating Power | PoE (802.3af)，max 11.5W, | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") | |
Weight | Approx. 586 g (1.3 lb.) | |

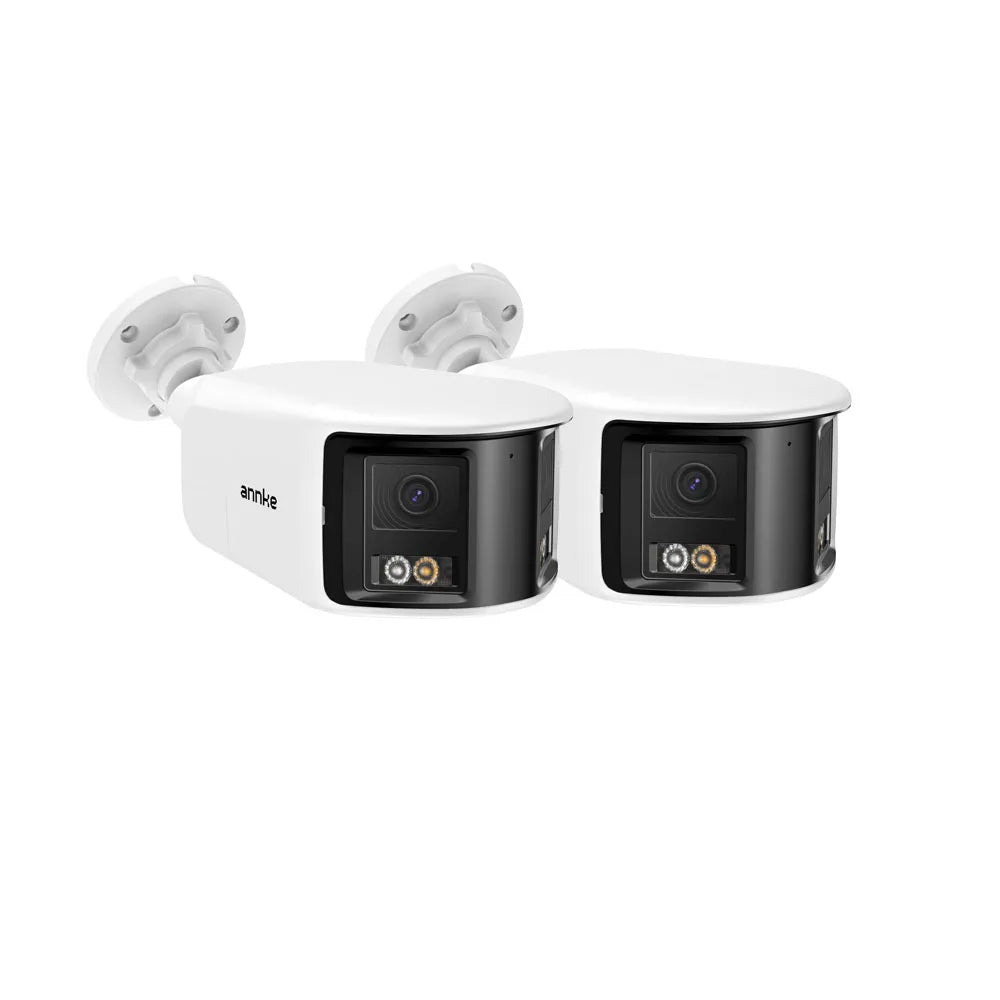

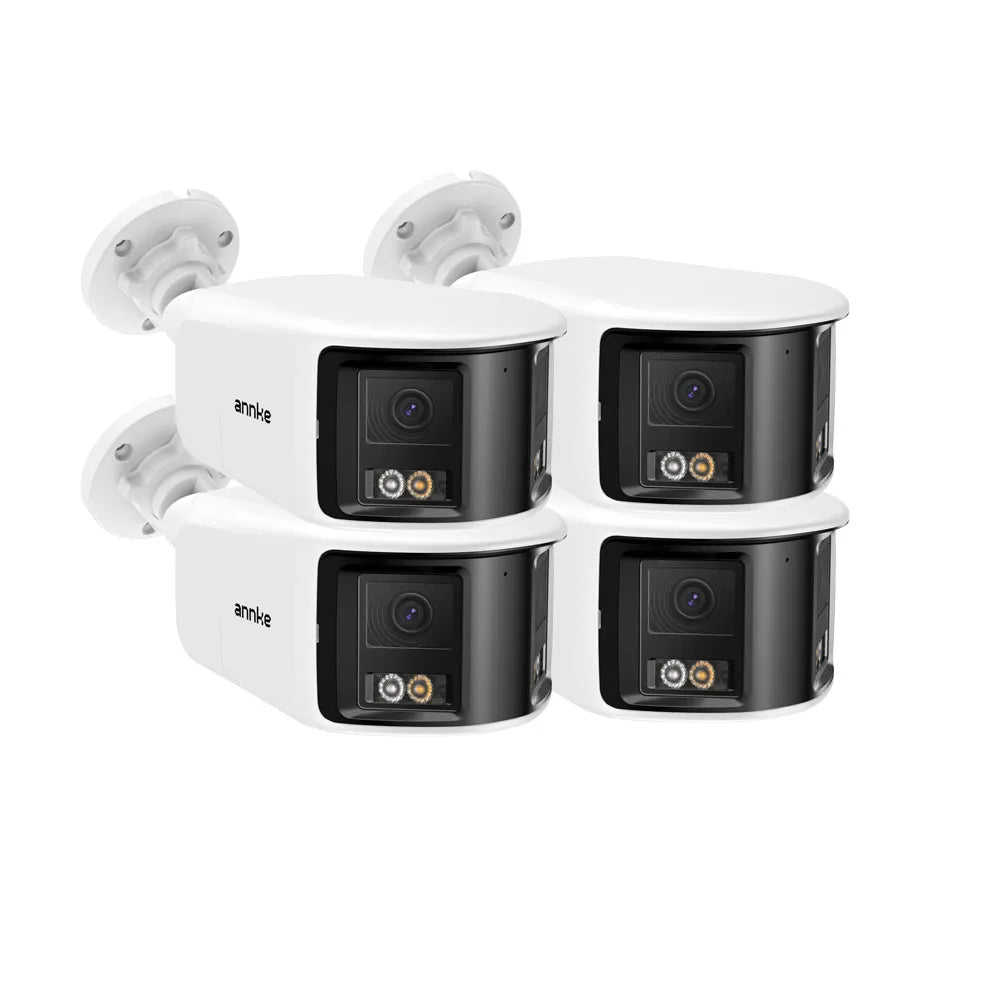

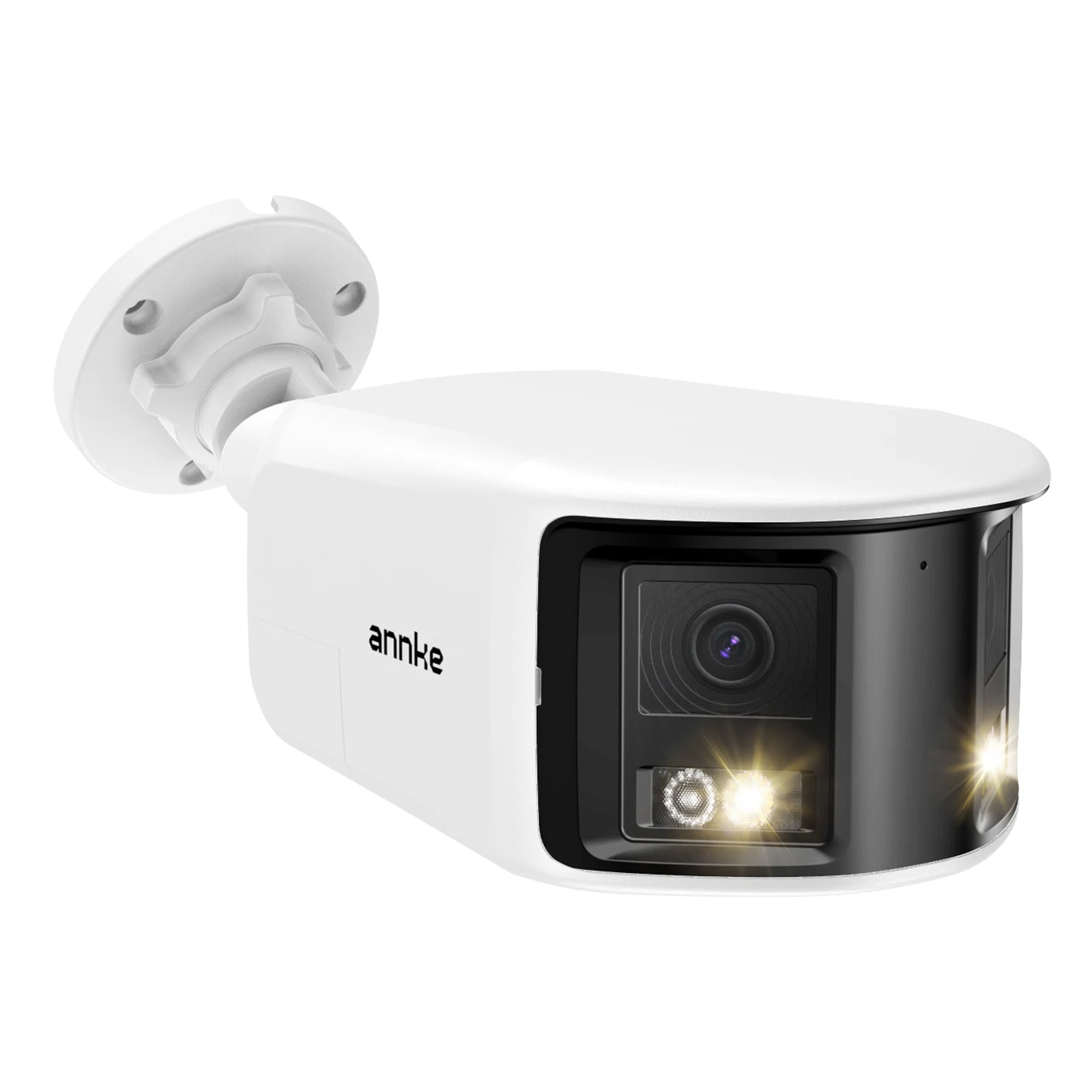

Model Number | I91EV | |
IP Camera | ||
Camera | Image sensor | 2×1/2.4" Progressive Scan CMOS |
Max resolution | 4096 x 1860 | |
Main Stream | 50 Hz: 20 fps (4096 x 1860) | |
Sub Stream | 50 Hz：20 fps（1200 × 536, 960 × 432） | |
Video compression | Main Stream: H.265+/H.265/H.264+/H.264 | |
Video Bit Rate | 32 Kbps to 16 Mbps | |
Built-in Microphone | Built-in Microphone, record with audio | |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC | |
Built-in Speaker | Yes, max. sound pressure: 10 cm: 97 dB | |
Lens | Dual lens: 2 mm | |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON) | |
Angle of View | Horizontal FOV: 180°, Vertical FOV: 77° | |
Supplement Light Type | Smart light, white light, IR light | |
Supplement Light Range | White light up to 30 m, IR light up to 30m | |
Motion detection 2.0 | Supoort, include human & vehicle detection | |
Image Parameters Switch | Yes | |
Image Enhancement | BLC, HLC, 3D DNR | |
Wide Dynamic Range | 120dB WDR | |
Network Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP | |
API | Support Open Network Video Interface protocol, version 19.12 | |
Basic Event | Motion detection (support human and vehicle detection), video tampering, exception detection | |
Audio Alarm | Support(Parameters adjustable,support custom audio, can be triggered from APP) | |
Flashing Alarm | White light, frequency adjustable, can be triggered from APP | |
Region of Interest (ROI) | 1 fixed region for main stream | |
Privacy Mask | 4 programmable polygon privacy masks | |
General Function | Rotate, remote access, IP Address Filter | |
General | Housing | Metal&Plastic, white color |
Operating Power | PoE (802.3af)，max 11.5W, | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB | |
Hardware Reset | Yes | |
Operating Temperature | -22 °F – 140 °F /-30 °C – 60 °C | |
Indoor/Outdoor | Indoor/Outdoor | |
Weatherproof Rating | IP67 | |
Dimension (L x W x H) | 103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") | |
Weight | Approx. 560 g (1.2 lb.) | |
