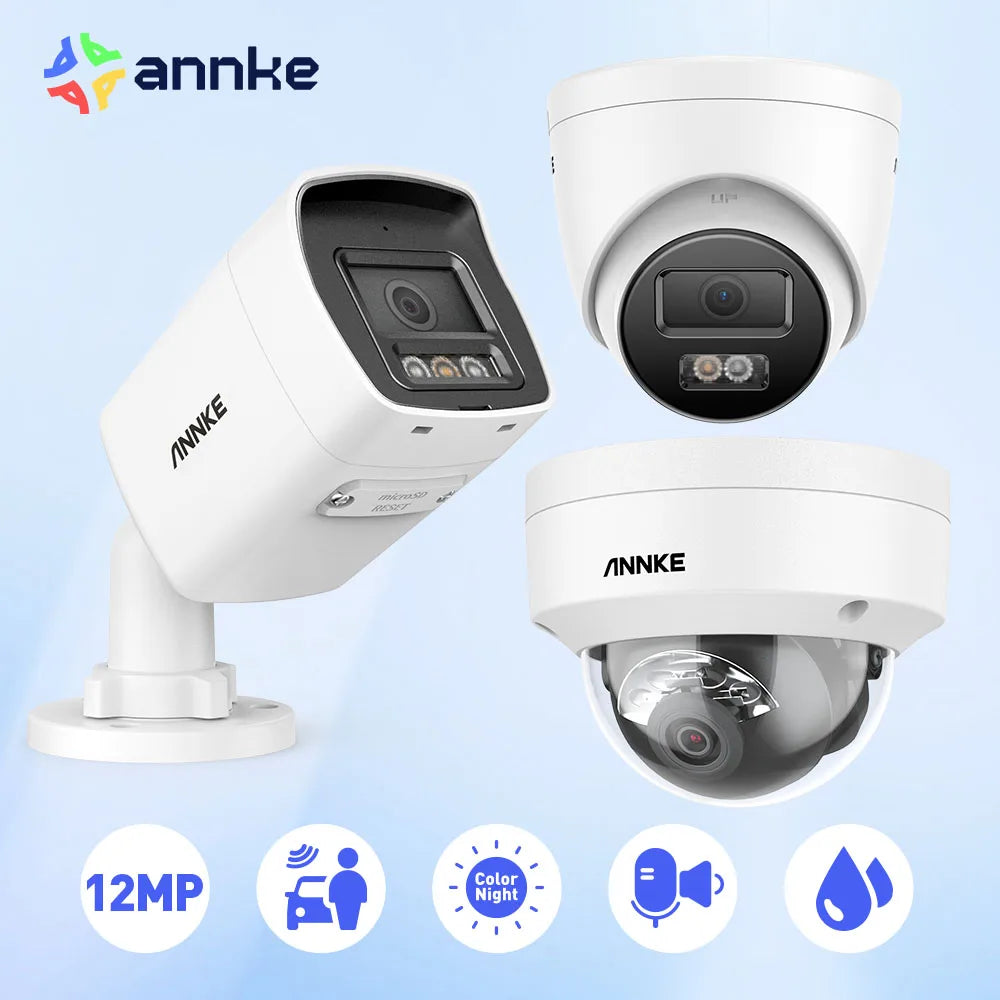

ANNKE 12MP 3K Outdoor Smart Dual Light PoE Security Camera
ANNKE 12MP 3K Outdoor Smart Dual Light PoE Security Camera
Couldn't load pickup availability
You’ll protect what matters with 12MP 3K clarity, smart dual-lighting, and rugged PoE reliability.
- You’ll get ultra-detailed footage at 4096×3072 with a 1/2.7" BSI CMOS sensor and a 2.8mm F1.6 lens, delivering bright, clear imagery across wide angles.
- Smart Motion Detection 2.0 prioritizes people and vehicles, reducing false alarms and sending you instant email photo alerts when action occurs.
- Dual-light operation lets infrared stay on for night, then switch to white illumination for color footage up to 30 meters, and you can choose from three selectable modes.
- Rugged IP67 housing supports outdoor use and Power over Ethernet plus DC12V; you also get a built-in microphone, support for up to 512GB microSD storage, and remote access via the ANNKE app.

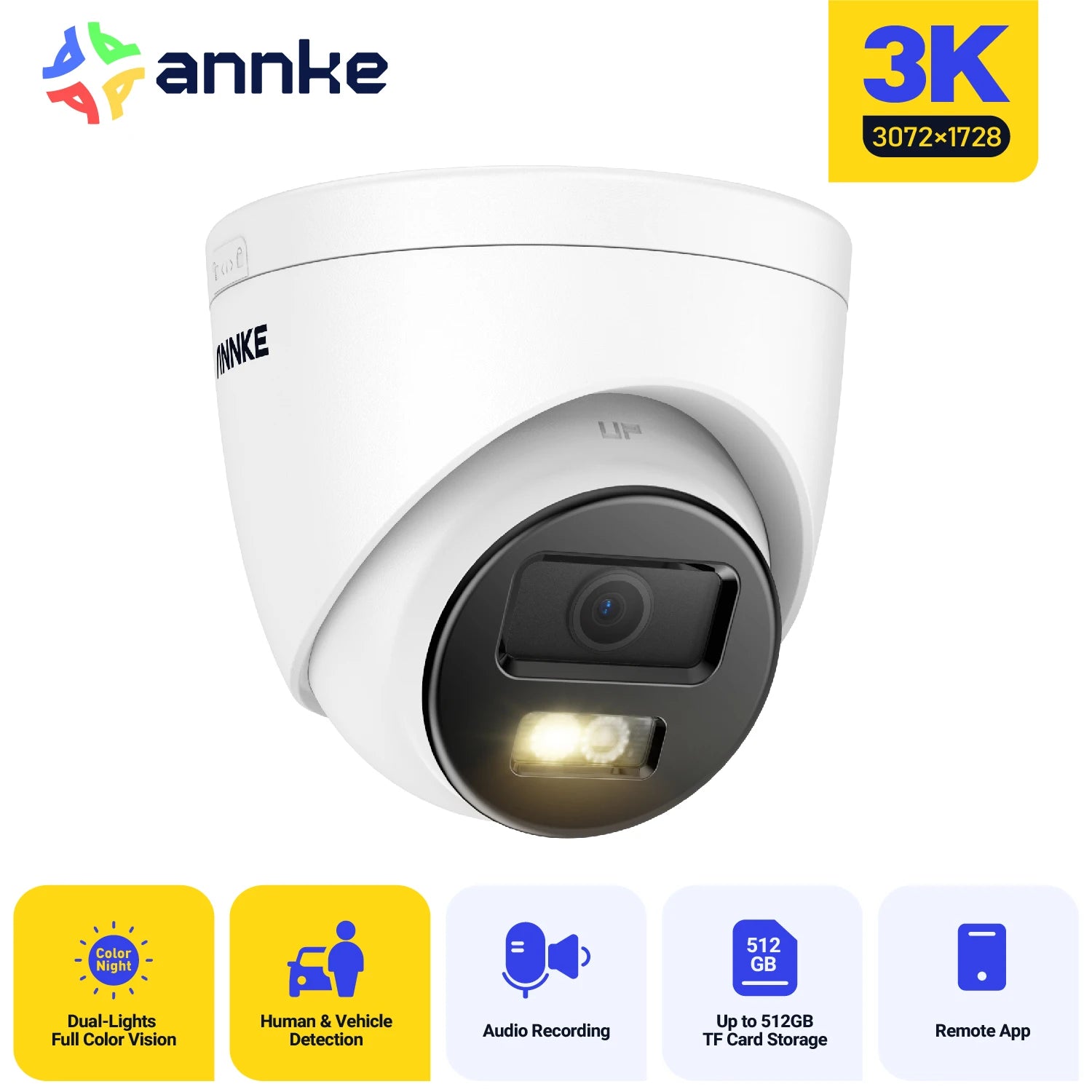

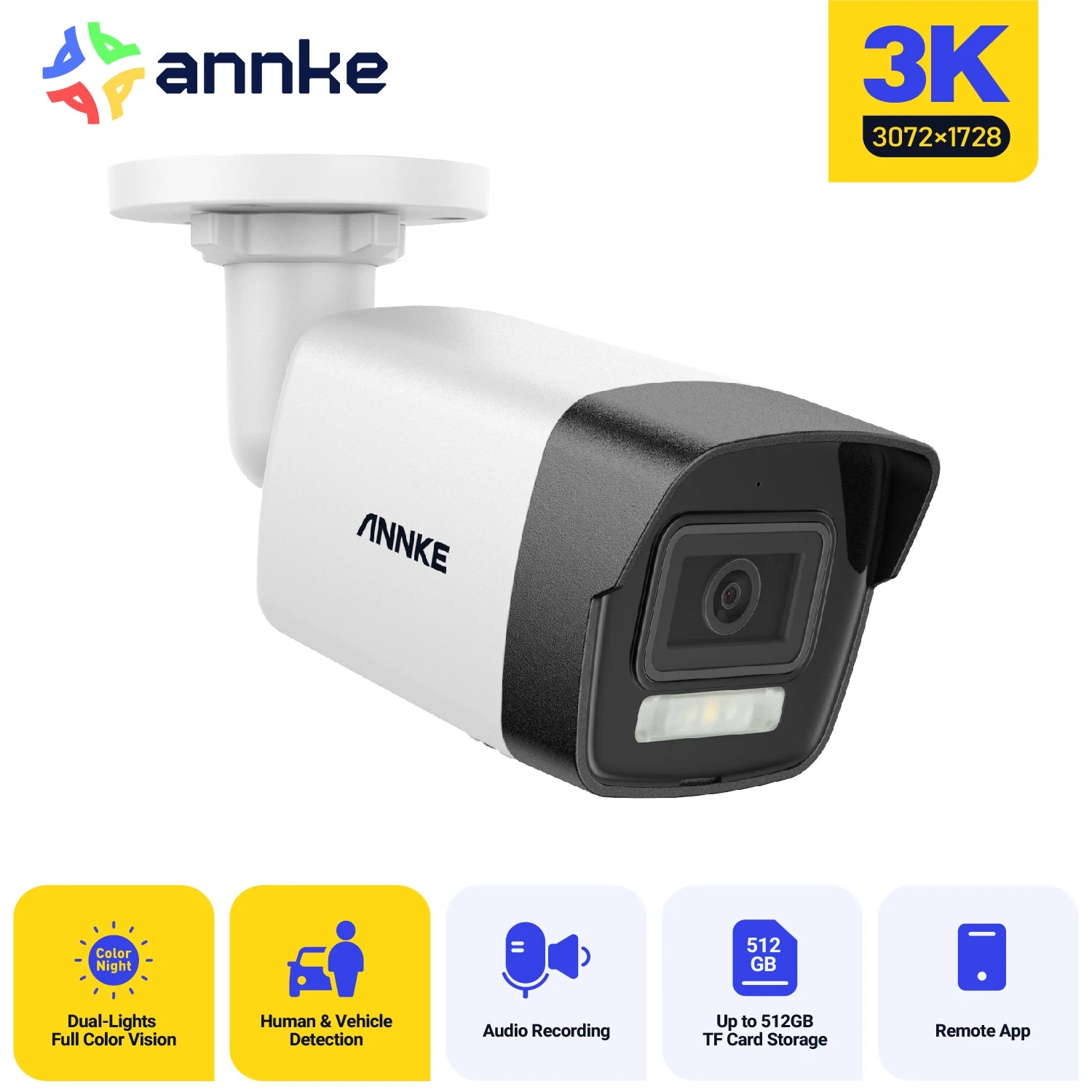

3K/5MP IP Camera | ||
Camera |
Image Sensor |
1/3" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) |
|
Substream |
50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 6 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
|
API |
Open Network Video Interface Version 18.12 |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Mirror,rotate,password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./270 g |
|

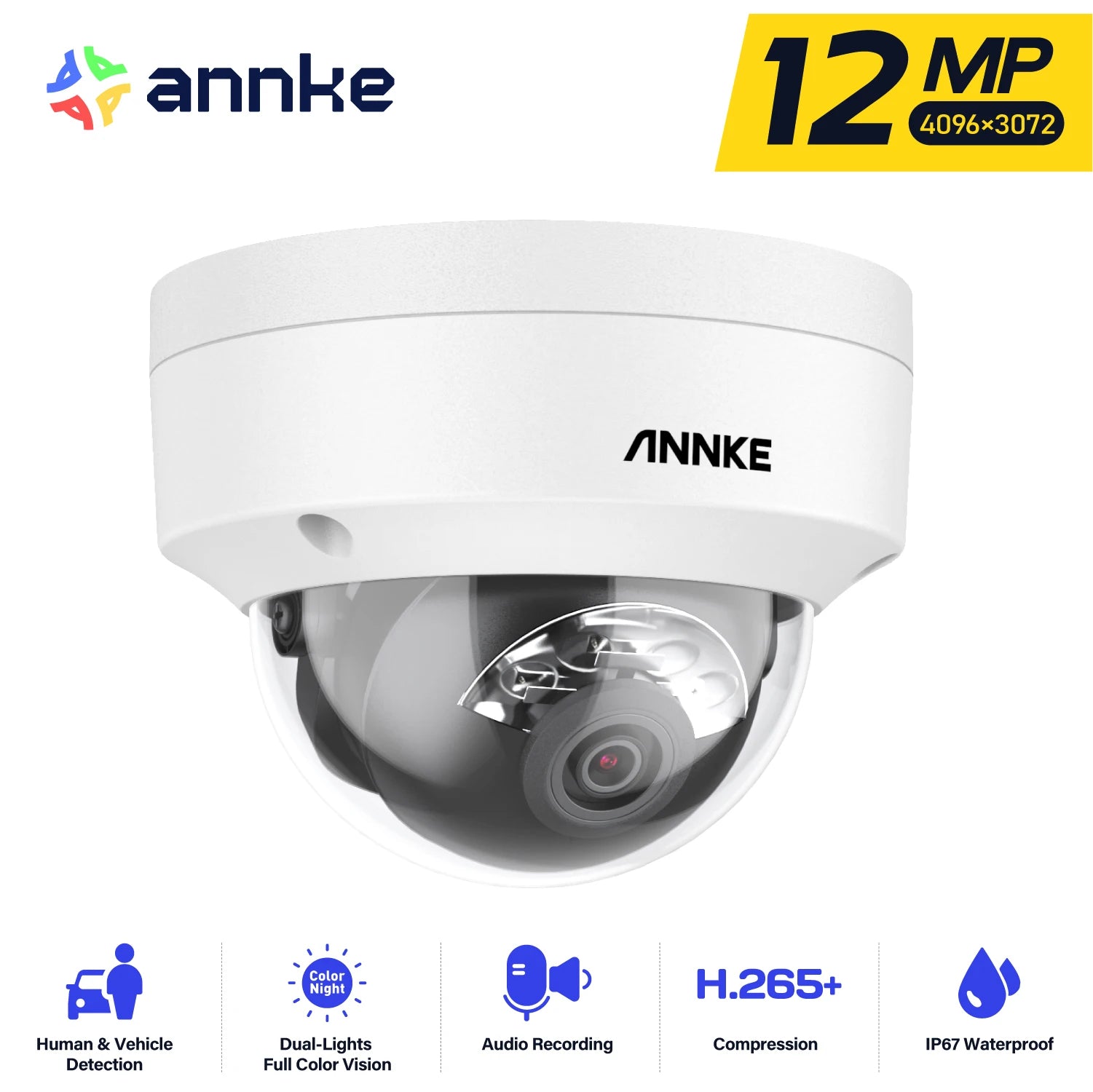

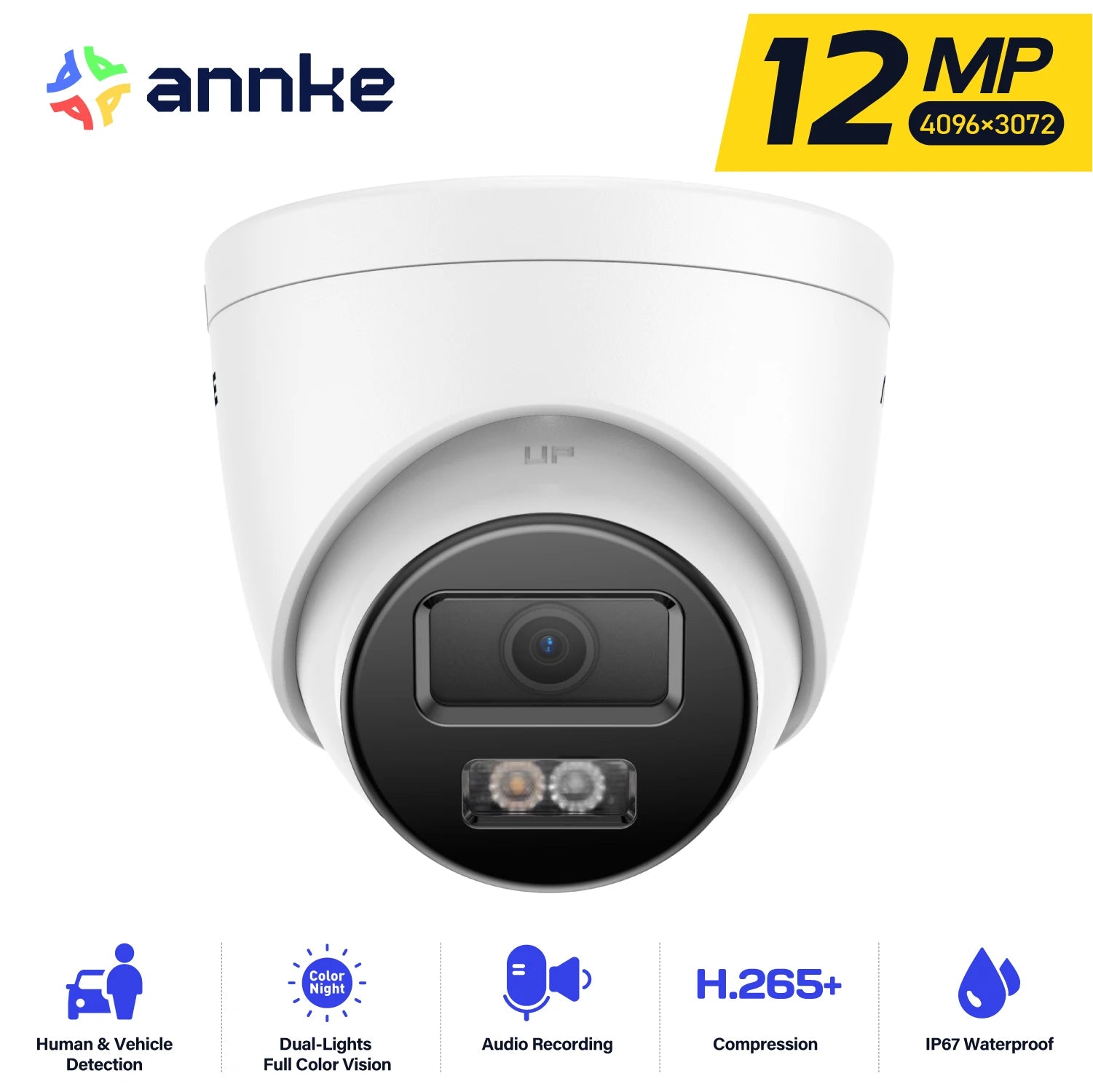

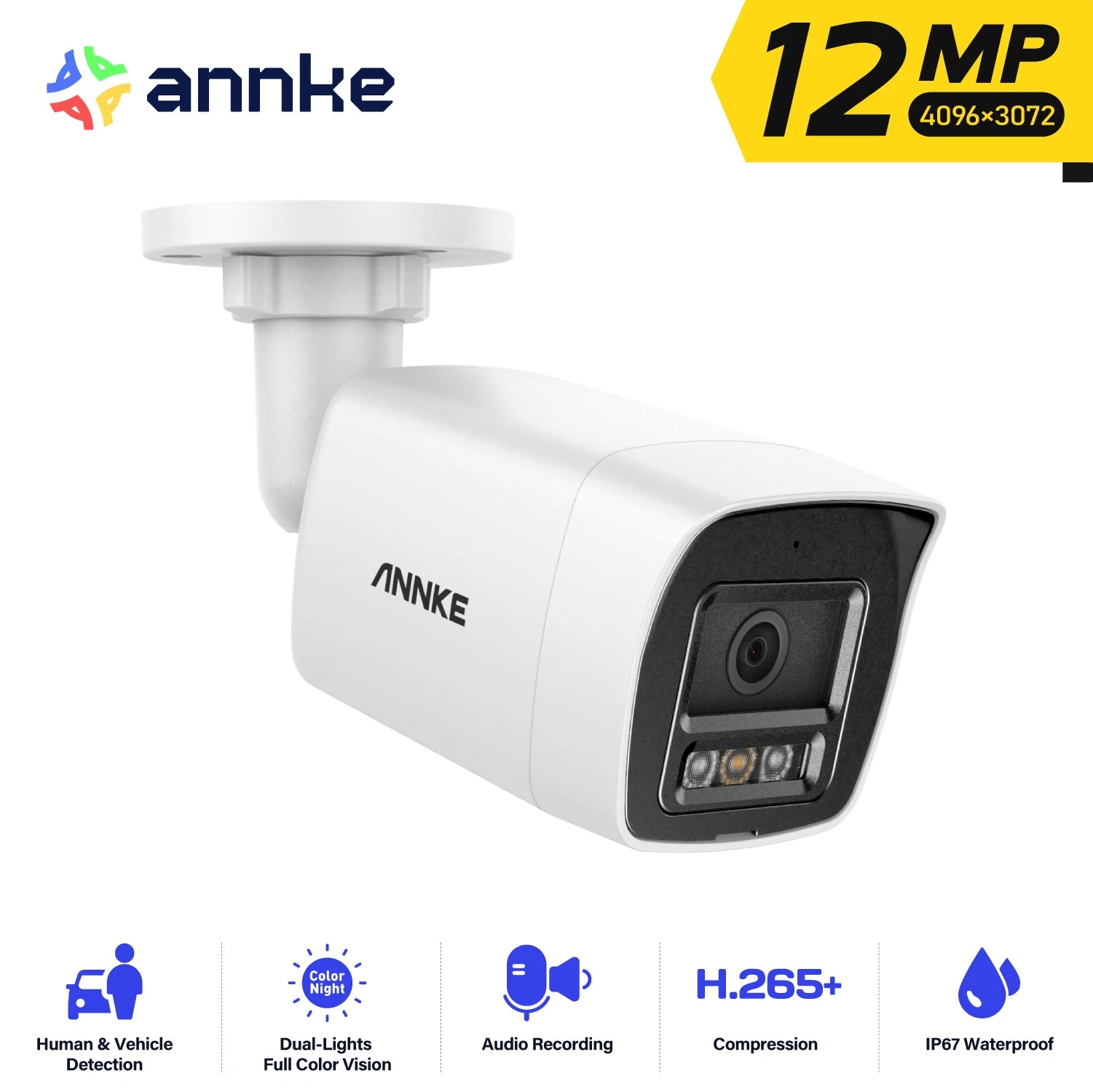

12MP IP Camera | ||
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Max resolution |
4096*3072(12MP) |
|
Main Stream |
50 Hz: 10 fps@4096*3072, 12.5 fps@(3840*2160, 3200*1800, 2688*1520, 1920*1080, 1280*720) |
|
Substream |
50 Hz: 12.5 fps (1280*720, 640*480, 640*360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Audio Input |
Built-in Microphone, record with audio |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
|
Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version 19.12 (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") |
|
Weight |
0.6 lb./285 g |
|
